Model X3C09E2-20

Rev A

Application Information

Directional Couplers and Sampling

Directional couplers are often used in circuits that require the sampling of an arbitrary signal. Because they are

passive, non-linear devices, Anaren directional couplers do not perturb the characteristics of the signal to be sampled,

and can be used for frequency monitoring and/or measurement of RF power. An example of a sampling circuit is the

reflectometer. The purpose of the reflectometer is to isolate and sample the incident and reflected signals from a

mismatched load. A basic reflectometer circuit is shown in Figure ap.n.1-1.

V input

V I

4

1

2

3

V R

Reflected

Wave

LOAD

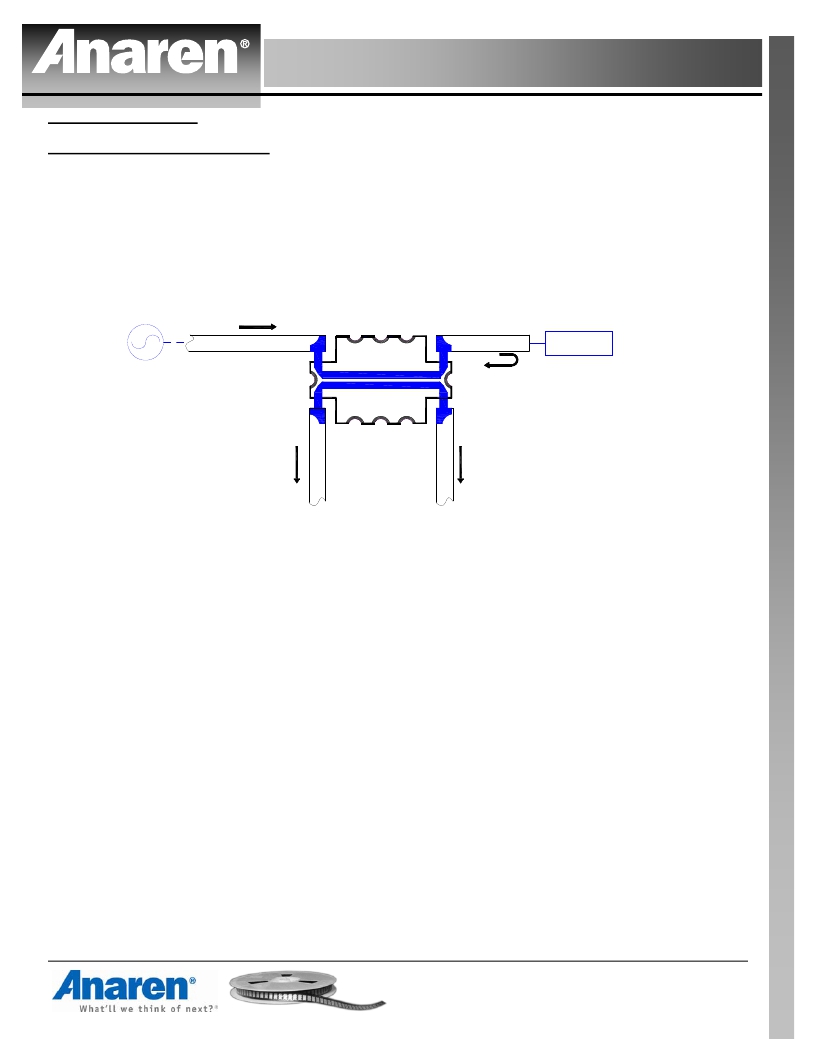

Figure ap.n.1-1. A Reflectometer Circuit Schematic

If the directional coupler has perfect directivity, then it is clear that V I is strictly a sample of the incident voltage V input ,

and V R is strictly a sample of the wave that is reflected from the load. Since directivity is never perfect in practice, both

V I and V R will contain samples of the input signal as well as the reflected signal. In that case,

V I = C + CDT Γ e j θ Eq. ap.n.1-1

and

V R = CD + CT Γ e j φ Eq. ap.n.1-2

where C is the coupling, D is the directivity, Γ is the complex reflection coefficient of the load, T is the transmission

coefficient, and φ and θ are unknown phase delay differences caused by the interconnect lines on the test board. If we

know V I and V R , we can easily calculate the reflection coefficient of the load. One should notice that in order to make

forward and reverse measurements using only one coupler, the directivity must be really low. In specific customer

applications, the preferred method for forward and reverse sampling is shown in Figure ap.n.1-2.

Available on Tape

and Reel for Pick and

Place Manufacturing.
